Metal core aluminium or copper printed circuit boards
These materials are especially intended for circuit boards whose thermal dissipation needs are high. This technology, given its conditions, fits perfectly in the market of circuit boards for illumination (energy efficiency), signage, automotive, etc. The use of materials with different thermal conductivity values enables our customers to adapt their designs to determined conditions.
Description
Package Information
Inquiry
These materials are especially intended for circuit boards whose thermal dissipation needs are high. This technology, given its conditions, fits perfectly in the market of circuit boards for illumination (energy efficiency), signage, automotive, etc. The use of materials with different thermal conductivity values enables our customers to adapt their designs to determined conditions.
Dielectrics and its composition are key factors to ensure the insulation and transmission of heat towards the dissipator or devices used to purge excess heat.

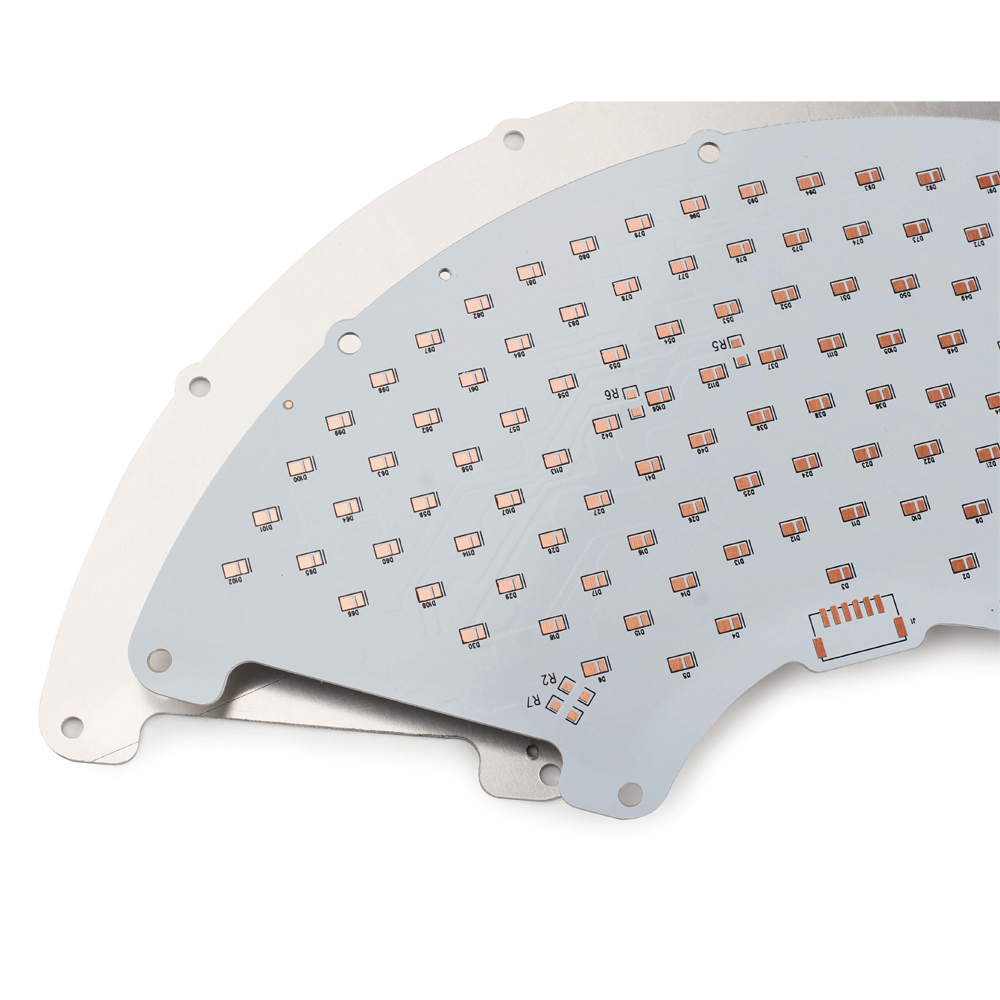

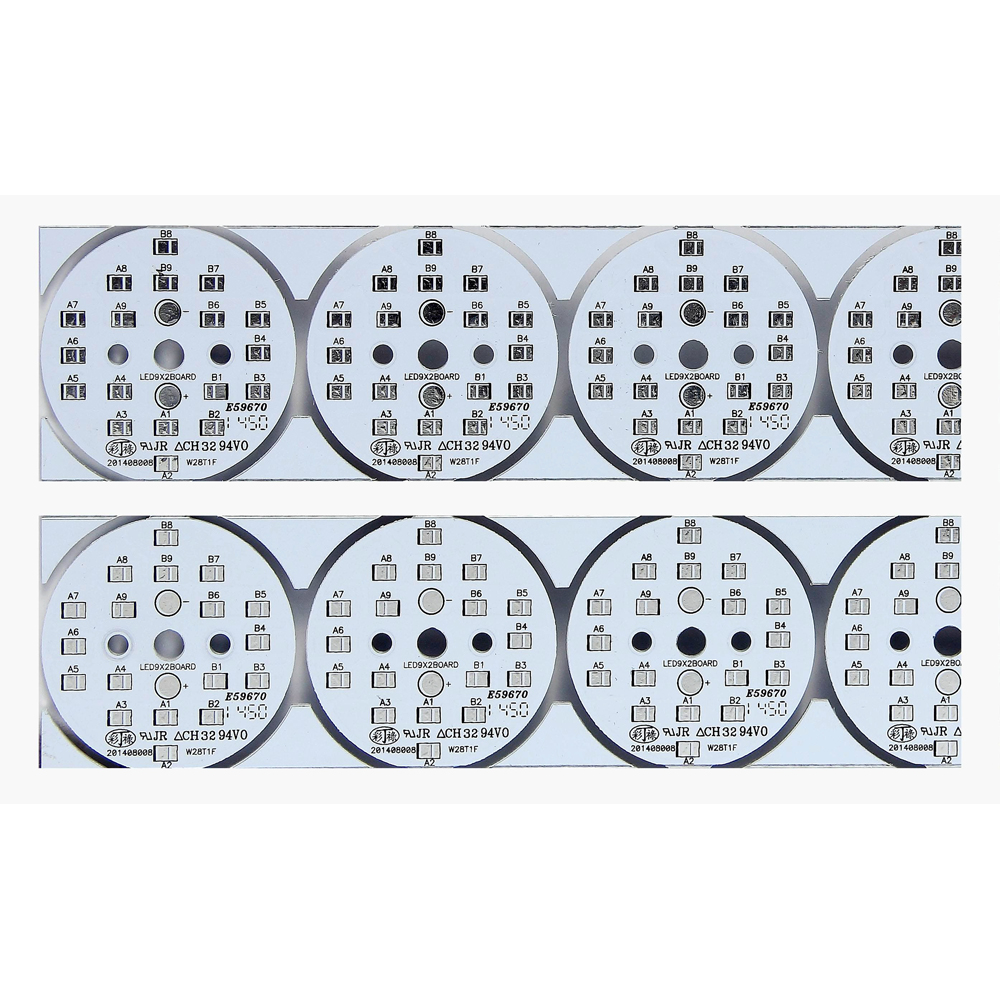

Technical Capacities Aluminium circuit board
| CONCEPT | STANDARD PRODUCTION | SPECIAL PRODUCTION |
|---|---|---|
| Technology | Single face | Single face |
| Copper thickness | 1.00 – 1.50 – 2.00 – 3.00 mm | 1.00 – 1.50 – 2.00 – 3.00 mm |
| Material | Dieléctrico cerámico / resina | Dieléctrico cerámico / resina |
| Copper thickness | 35µ – 70µ | 35µ – 70µ -105µ |
| Circuit finish | H.A.L.- O.S.P. | Immersion Tin (Imm.Sn) – Immersion Gold (Ni/Au) – Electrolytic Gold (with no thickness limit) – Electrolytic Nickel (with no thickness limit) |
| Tolerances on Screen Printing layers / Mask | +/- 0,15 mm | +/-0,075 mm (photo) |
| Tolerances on Screen Printing layers / Components | +/- 0,20 mm | +/- 0,20 mm |
| Tolerances on Screen Printing layers / Peelable | +/- 0,25 mm | +/- 0,25 mm |
| Thicknesses Screen Printing layers (Mask / Diagrams) | +/- 14 µ | +/- 25µ (photo) |
| Work panel dimension | 510 mm x 610 mm | 510 mm x 610 mm |
| Production cir. max. dimension | 590 mm x 495 mm | 575 mm x 485 mm (Led technology) |
| Circuit Dimension (Numerical control) | 500 mm x 630 mm | 500 mm x 630 mm |
| Circuit Dimension (Manual Scoring) | 450 mm x 450 mm | 450 mm x 450 mm |
| Circuit Dimension (Automatic Scoring) | 650 mm x 650 mm | 100 mm x 100 mm (minimum) |
| Solder resist colour | Green – Blue – White – Black – Gray – …; | White (photo) – Black (photo) – Green (photo) |
| Diagram colour | White – Black – … | White – Black |
| Carbon, Silver and Peelable Printing | Yes | Yes |
| Track width / Between track | 0,25 / 0,25mm | 0,20 / 0,20 mm |
| Minimum drill hole (Numerical Control) | 1,00 mm | 0,80 mm |
| Minimum drill hole (Mould) | 1,10 mm | 1,00 mm |
| Minimum milling (Numerical Control) | 1,20 mm | 1,00 mm |

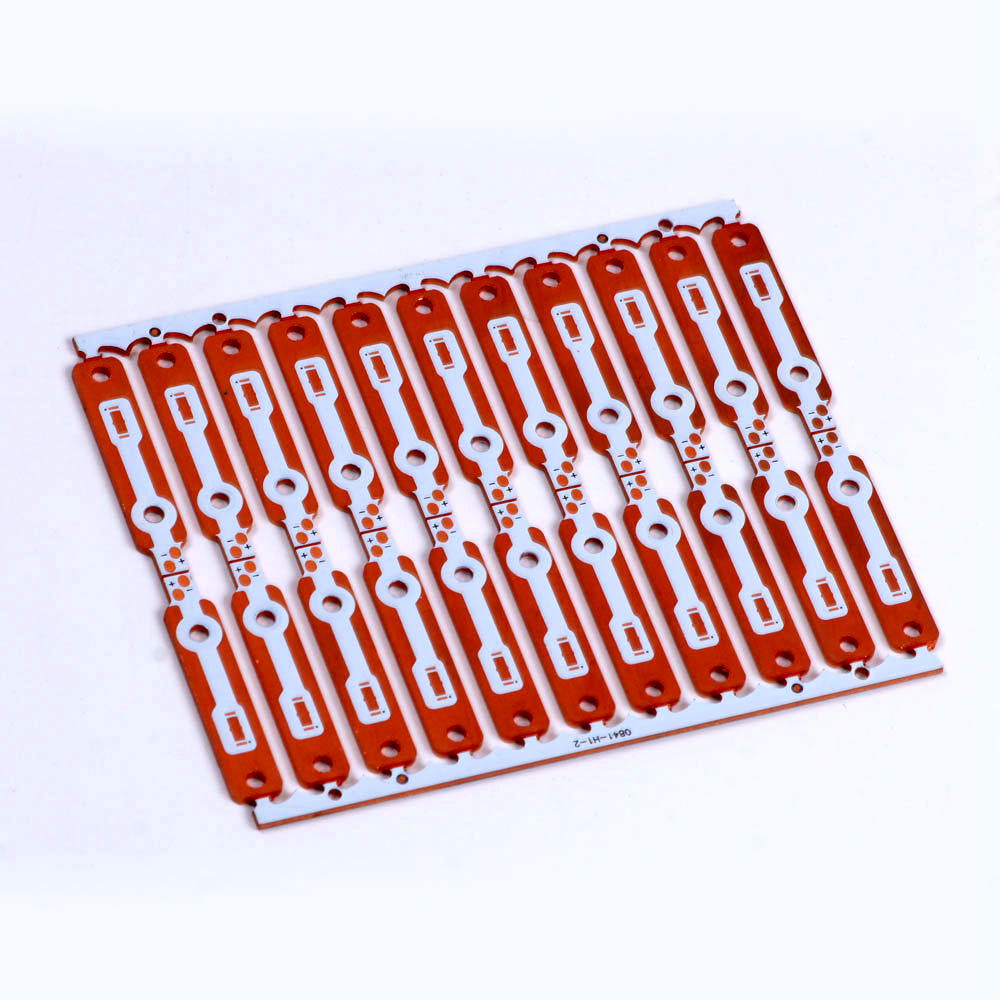

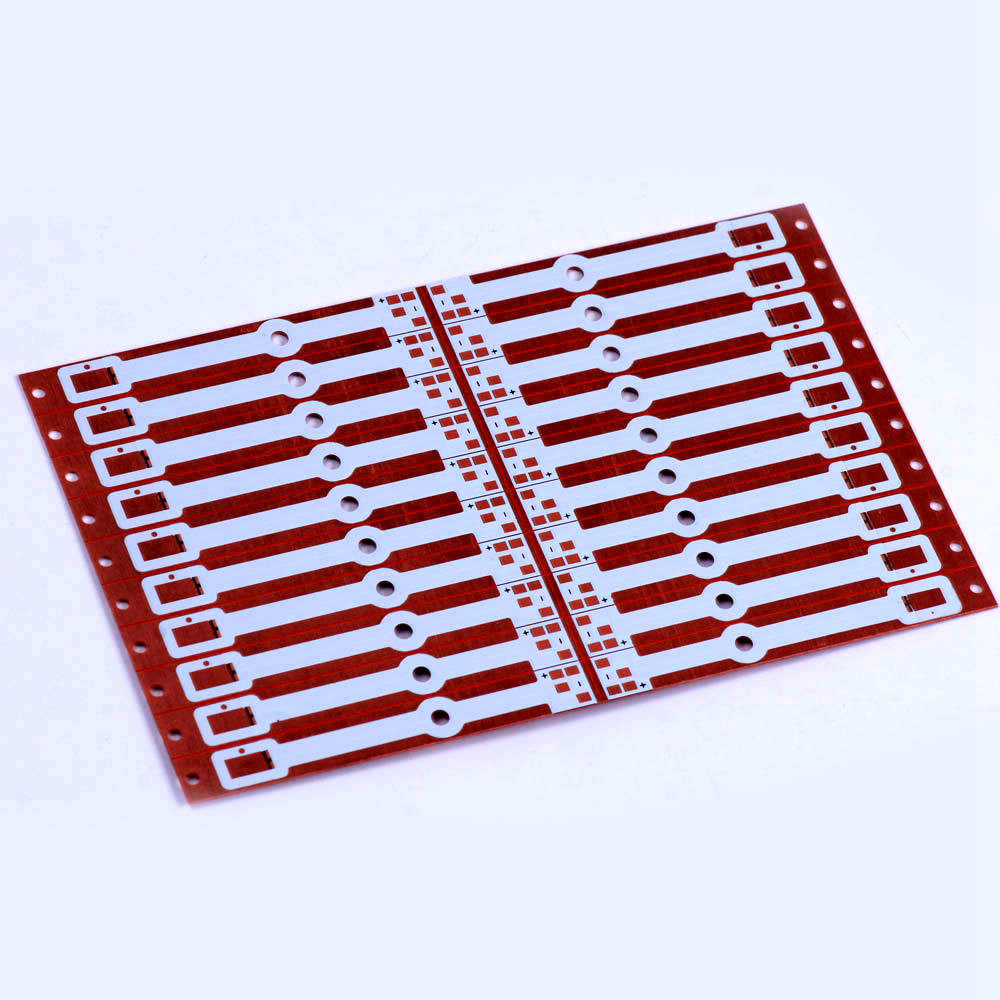

Technical Capacities flexible aluminium circuit board
| CONCEPT | STANDARD PRODUCTION | SPECIAL PRODUCTION |
|---|---|---|
| Technology | Single face FLEXIBLE | Single face FLEXIBLE |
| Copper thickness | 1.00 – 1.50 – 2.00 – 3.00 mm | 1.00 – 1.50 – 2.00 – 3.00 mm |
| Material | Espesor dieléctrico 25µ a 35µ | Espesor dieléctrico 25µ a 35µ |
| Copper thickness | 35µ – 70µ | 35µ – 70µ -105µ |
| Circuit finish | H.A.L.- O.S.P. | Immersion Tin (Imm.Sn) – Immersion Gold (Ni/Au) – Electrolytic Gold (with no thickness limit) – Electrolytic Nickel (with no thickness limit) |
| Tolerances on Screen Printing layers / Mask | +/- 0,15 mm | +/-0,075 mm (photo) |
| Tolerances on Screen Printing layers / Components | +/- 0,20 mm | +/- 0,20 mm |
| Tolerances on Screen Printing layers / Peelable | +/- 0,25 mm | +/- 0,25 mm |
| Thicknesses Screen Printing layers (Mask / Diagrams) | +/- 14 µ | +/- 25µ (photo) |
| Work panel dimension | 510 mm x 610 mm | 510 mm x 610 mm |
| Production cir. max. dimension | 590 mm x 495 mm | 575 mm x 485 mm (Led technology) |
| Circuit Dimension (Numerical control) | 500 mm x 630 mm | 500 mm x 630 mm |
| Circuit Dimension (Manual Scoring) | 450 mm x 450 mm | 450 mm x 450 mm |
| Circuit Dimension (Automatic Scoring) | 650 mm x 650 mm | 100 mm x 100 mm (minimum) |
| Solder resist colour | Green – Blue – White – Black – Gray – … | White (photo) – Black (photo) – Green (photo) |
| Color Esquema | White – Black – … | White – Black |
| Impresión Carbón, Plata y Pelable | Yes | Yes |
| Track width / Between track | 0,25 / 0,25mm | 0,20 / 0,20 mm |
| Minimum drill hole (Numerical Control) | 1,00 mm | 0,80 mm |
| Minimum drill hole (Mould) | 1,10 mm | 1,00 mm |
| Minimum milling (Numerical Control) | 1,20 mm | 1,00 mm |
| Bending angle | 60¼ | 60¼ |
